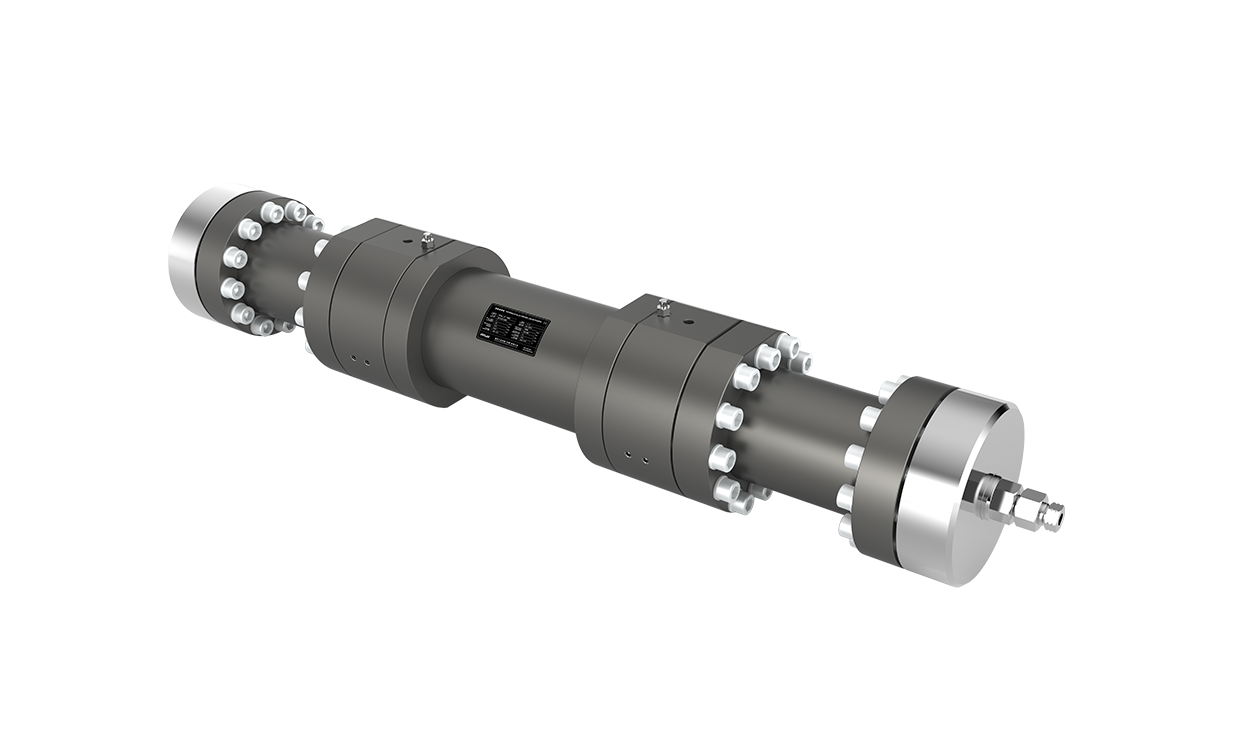

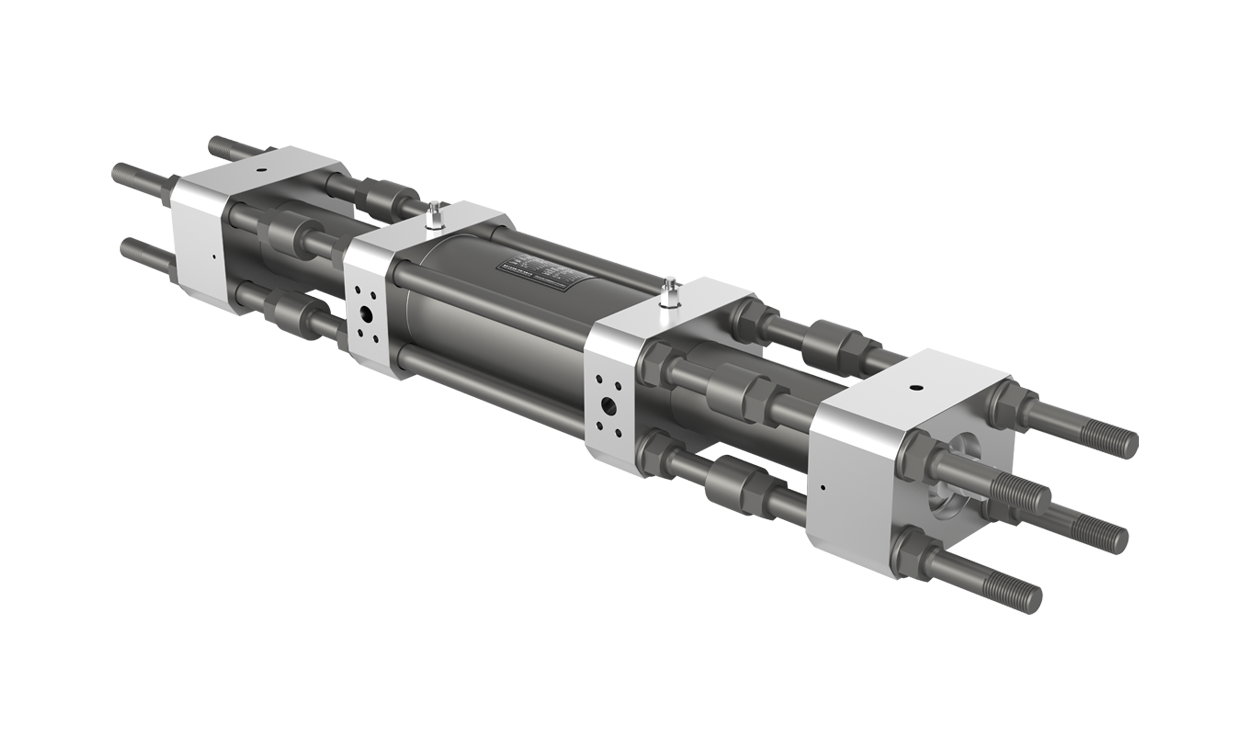

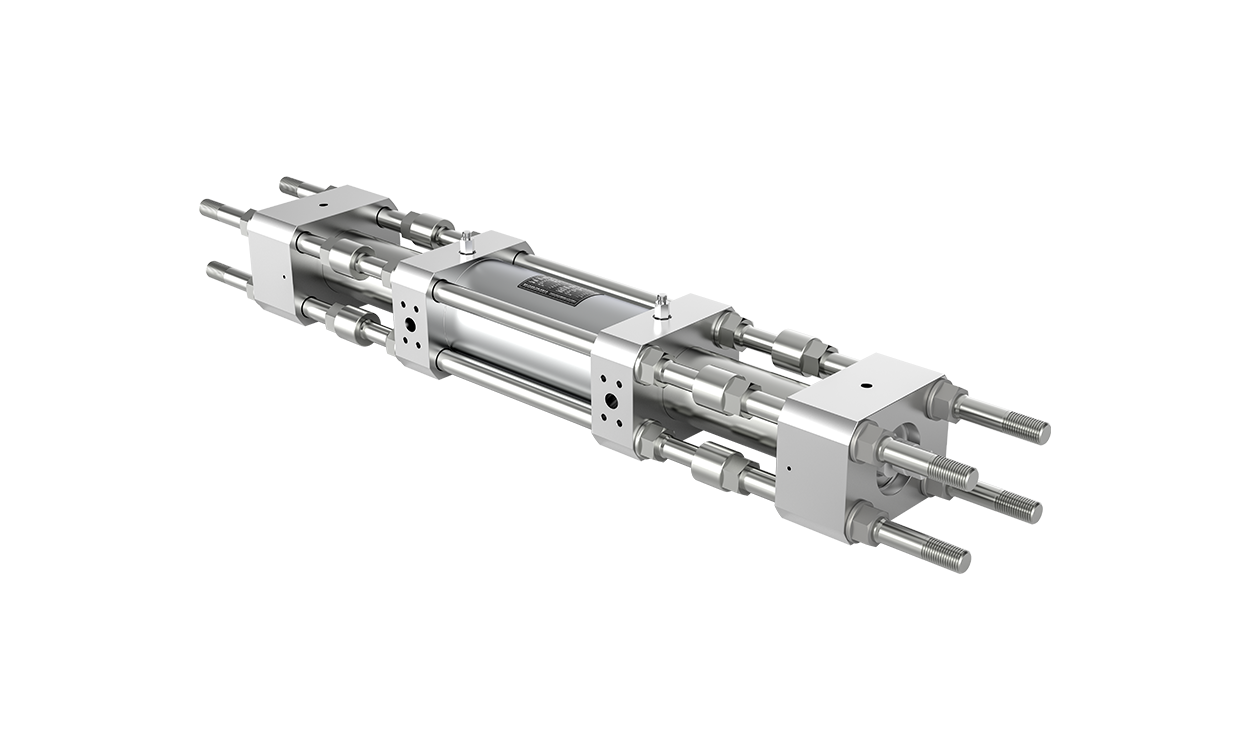

Hydraulically Driven Liquid Pumps

The hydraulically driven liquid pump developed and manufactured by HiFluid Industrial uses low-pressure hydraulic oil as the driving source to boost liquid media to the required pressure.

The pump is designed with a standard maximum working pressure of up to 700MPa. For applications requiring higher operating pressures, customized designs can be provided.

· Specifically designed for high-pressure liquid applications, suitable for a wide range of liquid media.

· Robust construction, capable of frequent start/stop cycles and continuous heavy-duty operation.

· Special structural separation between the drive side and the pressurization side, preventing cross-contamination of media.

· Maintenance-friendly design, significantly reducing the replacement time of wear parts.

· Excellent primary sealing performance and long maintenance intervals.

· Continuously adjustable flow rate from 0% to 100%.

· Large-bore, fast-acting check valve design for efficient operation.

· Maximum flow rate up to 7.6 L/min.

· HPP (High-Pressure Processing): Establishes ultra-high-pressure during HPP production, providing the required pressure environment for sterilization vessels.

· Isostatic Pressing: Supplies ultra-high-pressure media to sealed vessels for isostatic pressing applications, creating the necessary confining pressure.

· High-Pressure Water Jetting: Provides a high-pressure water source up to 400MPa for water jet cutting processes.

· High-Pressure Assisted Forming: Delivers high-pressure, high-flow liquid to assist forming processes, achieving improved forming results.

· High-Pressure Water Cleaning: Supplies large-flow, high-pressure water for industrial cleaning operations.

· Hydrostatic and Burst Testing: Provides high-pressure liquid media for hydrostatic pressure testing and burst testing applications.
