Products

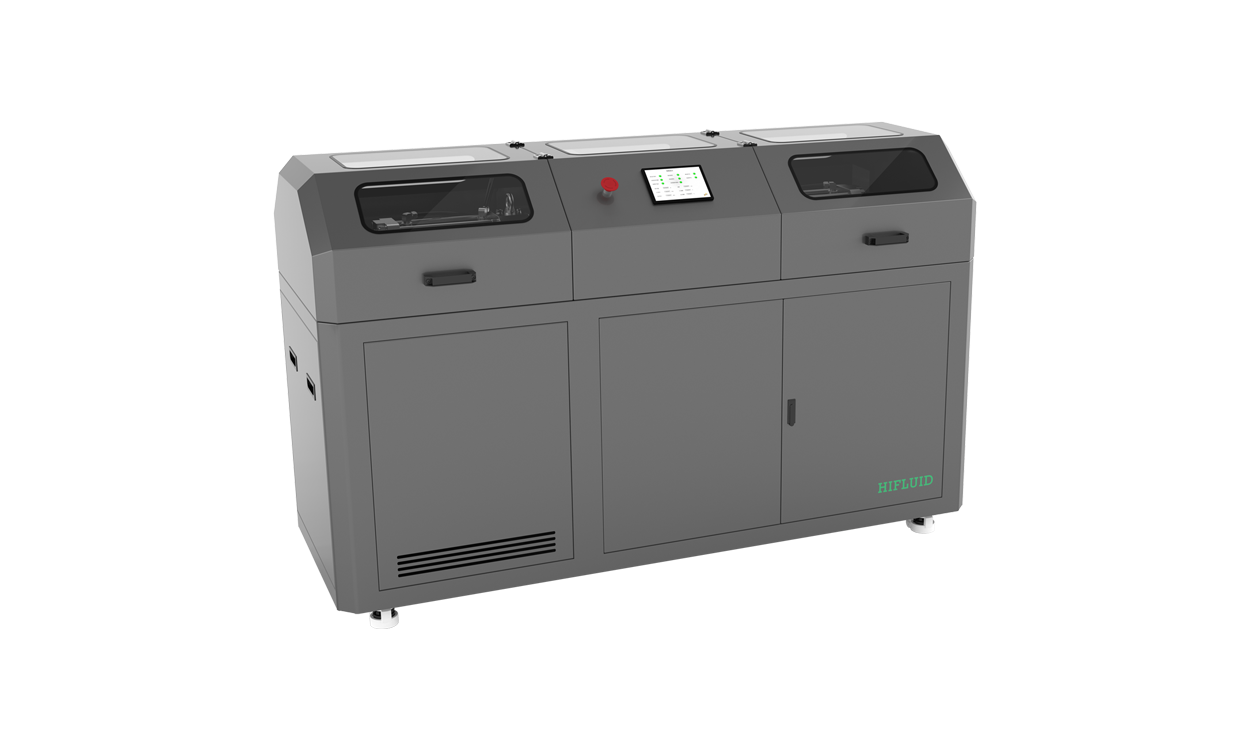

Servo Electric Boosting System

Independently developed and manufactured by HiFluid Industrial, the Servo Electric Gas Booster System operates without a hydraulic power unit or compressed air supply. It adopts direct motor-driven technology combined with an advanced servo control system to efficiently boost gas media, enabling precise control of both pressure and flow.

The system is designed with a standard maximum working pressure of up to 120MPa. For applications requiring higher operating pressures, customized designs can be provided to meet specific process requirements.

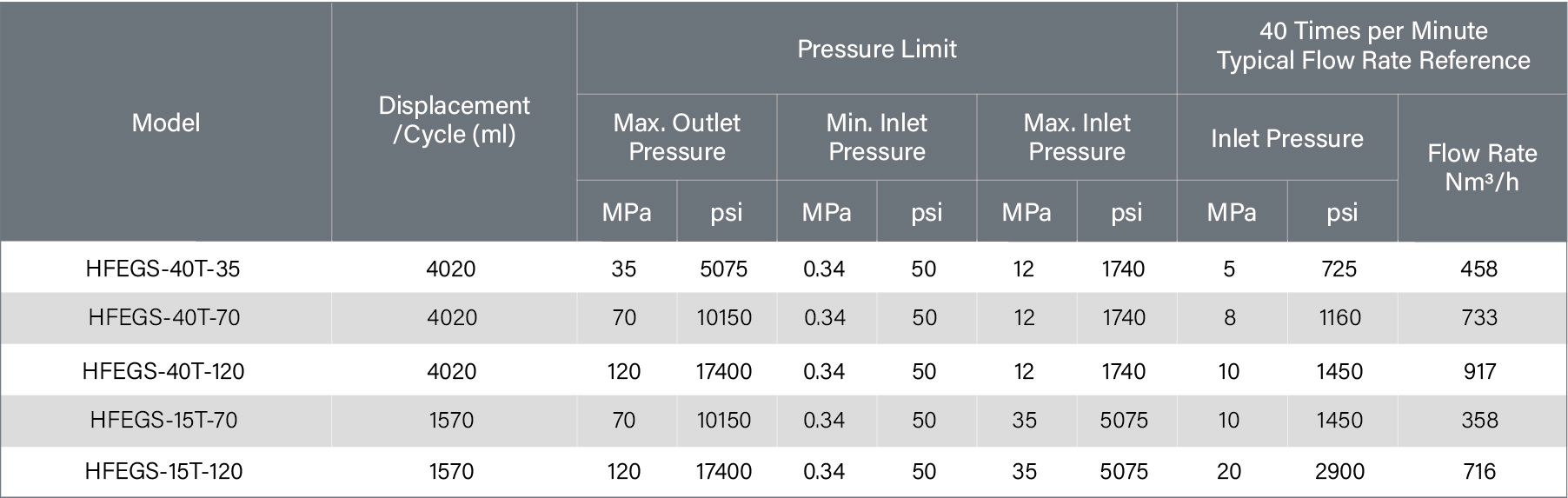

Single-Stage Double-Acting Servo Electric Boosting System

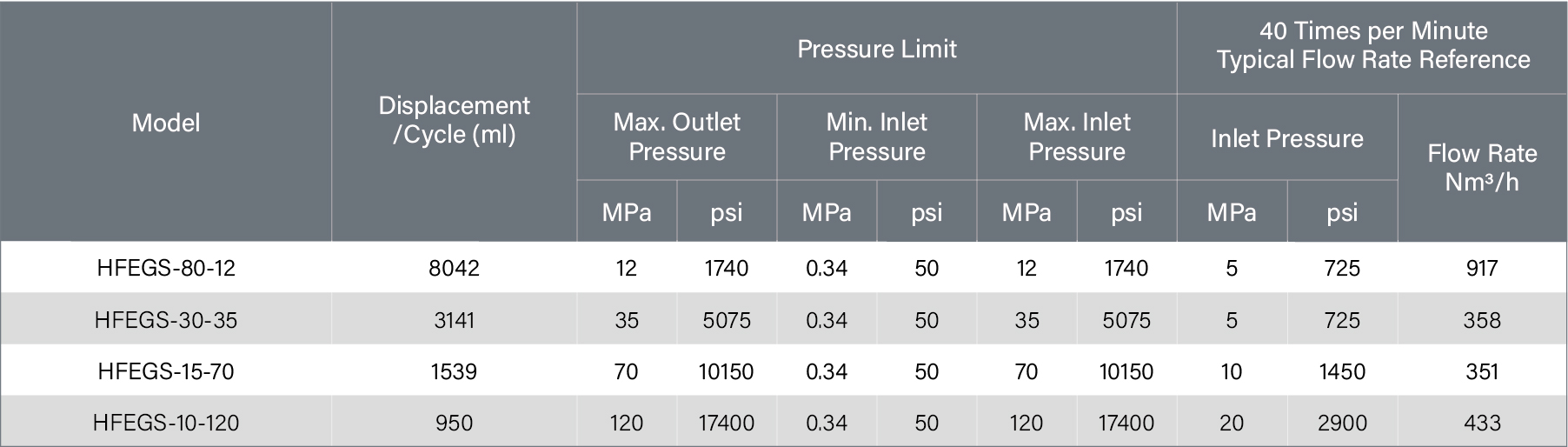

Double-Stage Single-Acting Servo Electric Boosting System

· Specifically designed for high-pressure gas applications, suitable for a wide range of gases.

· Excellent primary sealing performance, operates without oil lubrication, and features long maintenance intervals.

· Compact footprint, low noise, environmentally friendly, and energy-efficient.

· Maintenance-friendly structural design that significantly reduces seal replacement time.

· Intelligent automated control, fully compatible with various communication protocols.

· Modular design with flexible combinations and multiple configuration options.

· Equipped with a self-cooling system featuring spiral flow guidance for uniform and efficient heat exchange.

· Continuous flow regulation from 0% to 100%.

· Optional remote monitoring modules available.

· Extremely high power efficiency.

· Leak Testing: Provides high-pressure gas for leak detection to verify the integrity of components and identify potential leakage points.

· Gas Filling: Enables contamination-free, high-flow gas filling of cylinders, equipment, or systems to achieve required pressure levels.

· Semiconductor CO₂ Applications: Used in semiconductor manufacturing processes such as cleaning, atomization, and etching.

· Gas-Assisted Forming: Supplies high-pressure, high-flow gas to support forming processes, improving forming quality and consistency.

· Pressure Testing: Provides high-precision pressure control during pressure testing procedures.

· Oxygen Applications: Applied in large-scale oxygen cylinder operations, such as commercial diving stations and medical institutions.
